One unit instead of 12 individual transmitters.

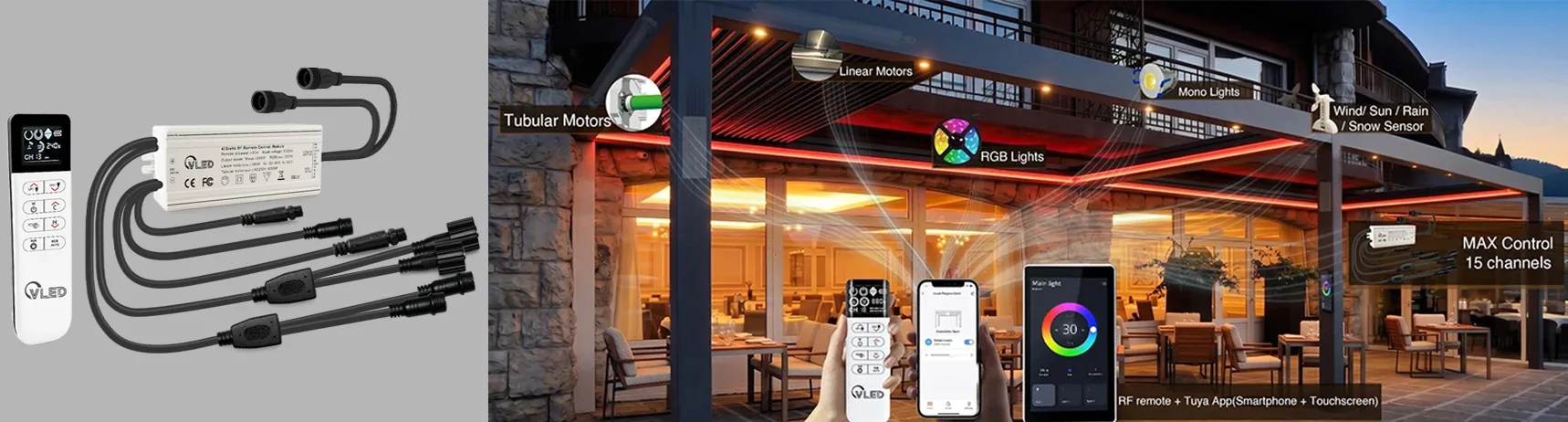

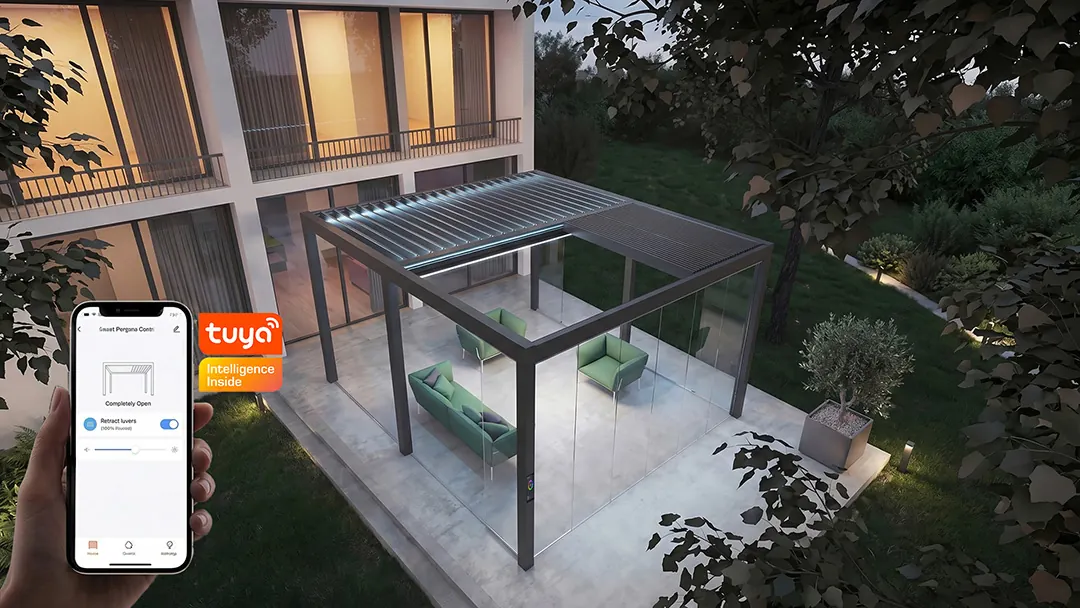

Take full control of your pergola with our smart integrated lighting and motor control solutions. Designed specifically for louvered and retractable canopies, our pergola control system allows you to easily manage LED lighting, actuators, motors, weather sensors, and other devices using a single remote control or mobile app.
RGB Lighting
16M colors · dynamic scenes · smooth 0–100% dimming
Mono Lighting
DC24V · Max 300W · profile strip compatible
Linear Actuator
Up to 4 motors · louver blade tilt 0°–90°
Tubular Motor
Up to 2 motors · Somfy, AOK, Dooya compatible
Weather Sensor
Wind · Rain · Sun · Snow — auto protective logic
Triple Control Modes

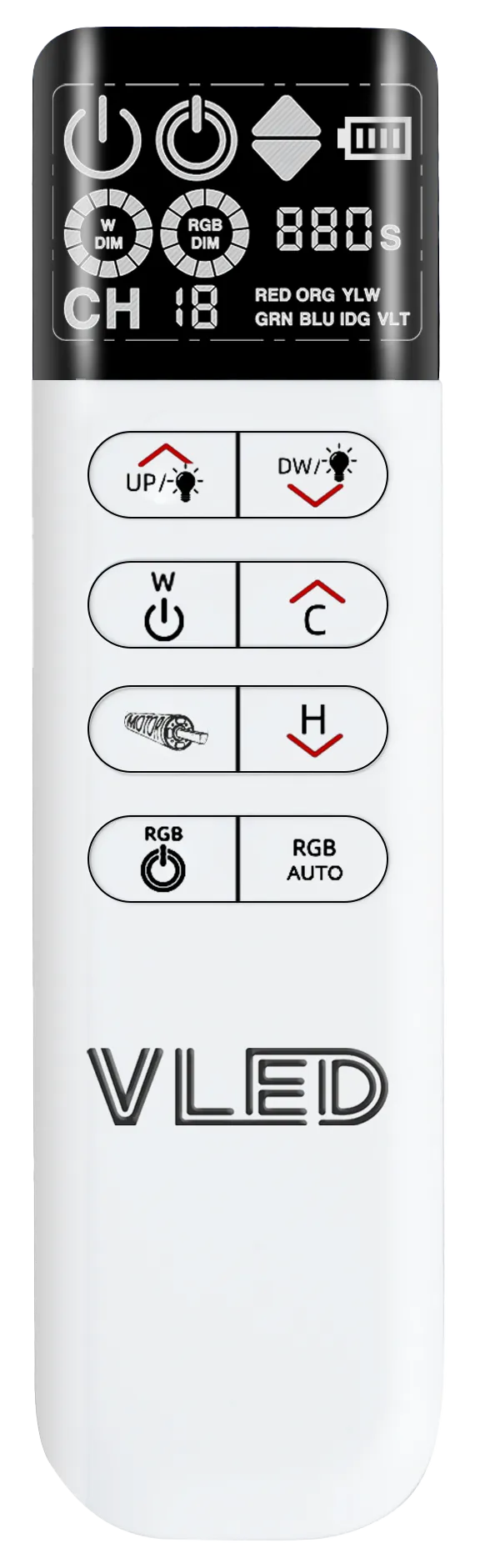

RF Remote + Tuya App + Touchscreen Panel.
What makes our system stand out.

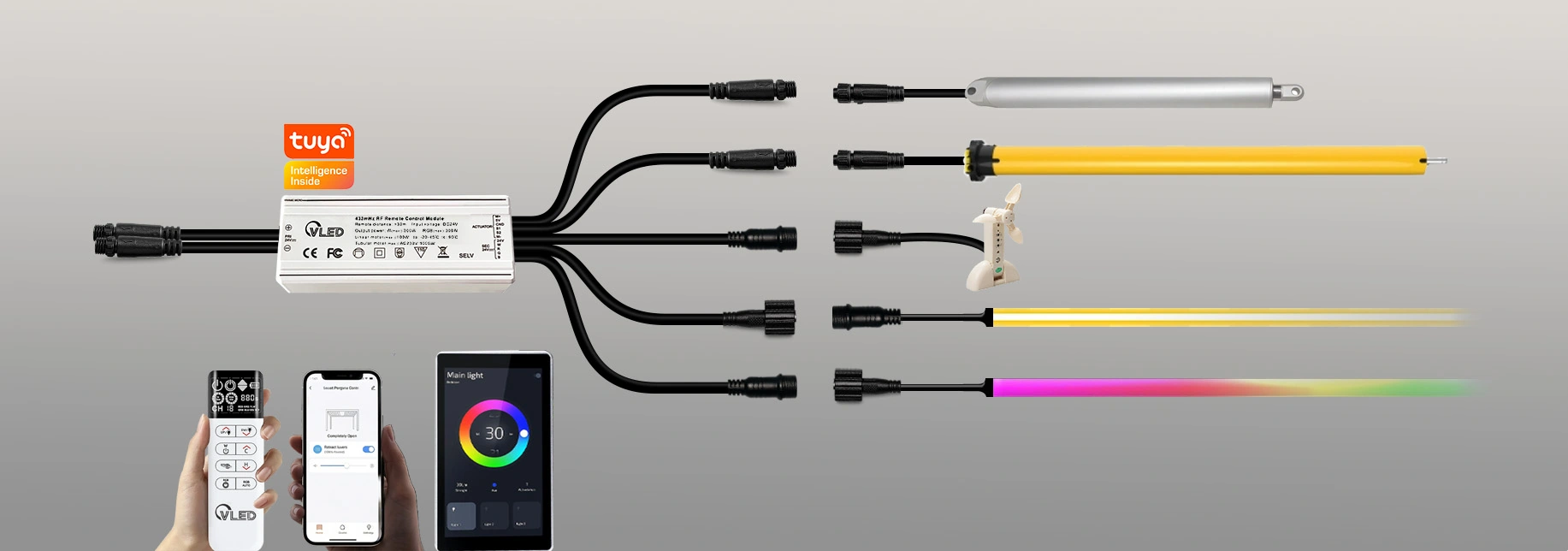

All-in-one smart control system for retractable louvre pergolas. 12-in-1 integration with RF, App, and touchscreen control. Smarter automation, better comfort, seamless outdoor living.

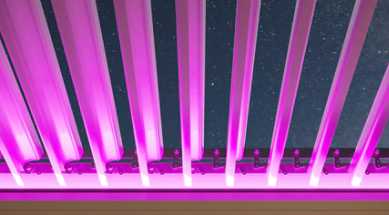

RGB Lighting Control
Full-spectrum color, dynamic
effects, smooth dimming
Mono Lighting Control
Smooth dimming, DC24V,
Max. 300W

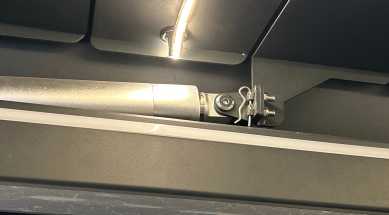

Multi Linear Actuator Control
Up to 4 motors, Flexible control
for pergola louver

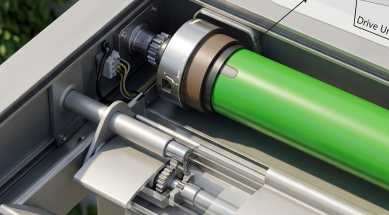

Multi Tubular Motor Control
Up to 2 motors, Compatible
with Somfy, AOK, and Dooya

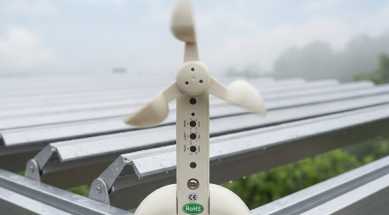

Wind / Sun / Rain Sensor
Automatically adjusts or
closes the pergola based on weather conditions
Snow Sensor Control
Automatically closes the
pergola during snowfall

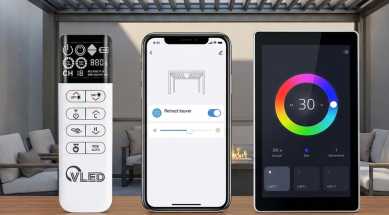

Multi-Control Modes
RF remote, mobile app,and LCD touchscreen panel

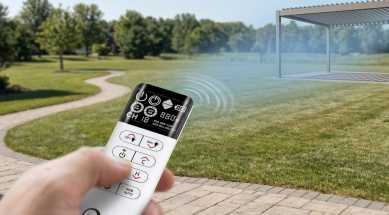

Ultra Long Distance Control
Strong signal with over 100m
control range

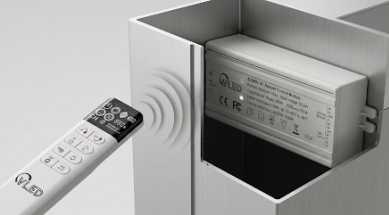

Strong Anti-Interference
Reliable signal even through
3mm aluminum structures

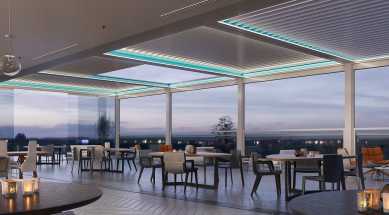

15 Multi-Channel Control
Flexible grouping and
independent control

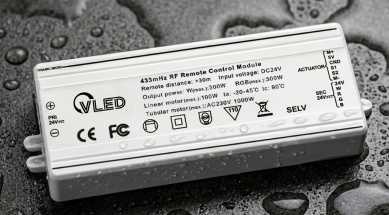

IP65 Waterproof Protection
Reliable outdoor performance
against dust and water

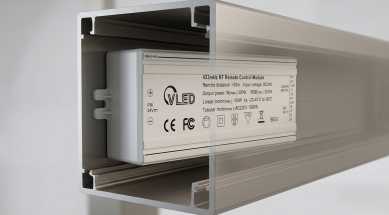

Compact Control Box
Designed to fit inside most
pergola structures
FAQ
1. Can this controller operate both lighting and pergola motors?
Yes. The integrated controller can manage pergola lighting, linear actuators, tubular motors, and weather sensors from one control system. Users can operate these functions through an RF remote, Tuya mobile app, or touchscreen panel.
2. How many motors can one controller operate?
The published configuration supports up to 4 linear actuators and up to 2 tubular motors. The final motor capacity depends on the selected controller model, motor type, voltage, load, and wiring configuration. Our engineering team can confirm the correct configuration for your pergola design.
3. Does it support RGB and single-color lighting?
Yes. The system supports both RGB and single-color lighting.
- RGB lighting: up to 16 million colors, dynamic scenes, and smooth 0–100% dimming
- Single-color lighting: DC24V output with up to 300W capacity
- Compatible lighting options include profile LED strips, spotlights, and other pergola lighting products
4. Is it compatible with Somfy, A-OK, and Dooya motors?
The controller is designed to support selected Somfy, A-OK, and Dooya tubular motor configurations. Compatibility is not universal for every model. Final compatibility should be confirmed based on the motor voltage, control protocol, wiring, power rating, and required functions.
Please provide the motor model and datasheet for compatibility confirmation before ordering.
5. What is the RF range?
RF specification is more than 100 meters in open-area conditions. The actual range depends on the pergola structure, aluminum enclosure, wall thickness, antenna position, interference, and installation environment. The system is designed with anti-interference performance and can operate through aluminum structures up to 3 mm thick.
For a finished pergola, we recommend testing the complete assembled structure rather than relying only on an open-area range test.
6. Does the system work during internet outages?
Yes. Core local functions can continue through the RF remote and local touchscreen panel when the internet or cloud service is unavailable. This includes local lighting and motor commands.
Tuya app features that require internet access—such as remote access, cloud monitoring, or cloud-based functions—may be unavailable during an internet outage. The exact offline behavior depends on the selected controller, firmware, and system configuration.
7. What certifications are available?
VLEDSTAR states that its quality and environmental management systems follow ISO9001 and ISO14001 standards. Depending on the product model and target market, available product certifications may include:
- CE
- RoHS
- FCC
- SAA
- UL
- TUV
- ETL
- PSE
Certification availability varies by product and configuration. Please request the relevant certificates for the specific controller, power supply, remote, and lighting products included in your project.
8. Can the remote and enclosure be customized?
Yes. OEM and private-label customization is available for qualifying projects. Options may include:
- Custom logo and branding
- Private-label firmware
- Remote-control layout and channel configuration
- Custom enclosure color and appearance
- Custom wiring and connector configuration
- Custom channel mapping
- Branded app or control interface
- Installation documents and packaging
Customization requirements, minimum order quantities, tooling, and lead times should be confirmed during the engineering and sampling stage.
